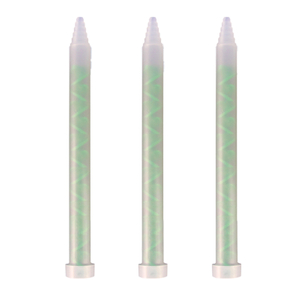

The MR series dynamic mixing tube is suitable for automatic mixing and quantitative systems. The difference between it and static mixers is that the spiral blades in the tube can rotate quickly; the rotation of the MR spiral blades is powered by matching motors and valves; this unique The mixing tube is suitable for liquids with a wide range of ratios and viscosities, and foamy liquids. The MR mixing tube is easy to clean and can be reused many times, providing a low-cost solution for the mixing of two-component liquids.
Parameters Table:Length unit: mm, Capacity unit: ml
Serial number | Product number | Inside diameter | Outside diameter | Section number | Length | Caliber |
1 | MR06-12 | 6.4 | 10 | 12 | 111 | 1.8 |
2 | MR08-12 | 8 | 12 | 12 | 130 | 2.4 |
3 | MR10-12 | 10 | 14 | 12 | 155 | 3 |
4 | MR13-12 | 13 | 17 | 12 | 197 | 4 |
The MR series dynamic mixing tube is suitable for automatic mixing and quantitative systems. The difference between it and static mixers is that the spiral blades in the tube can rotate quickly; the rotation of the MR spiral blades is powered by matching motors and valves; this unique The mixing tube is suitable for liquids with a wide range of ratios and viscosities, and foamy liquids. The MR mixing tube is easy to clean and can be reused many times, providing a low-cost solution for the mixing of two-component liquids.
Parameters Table:Length unit: mm, Capacity unit: ml
Serial number | Product number | Inside diameter | Outside diameter | Section number | Length | Caliber |
1 | MR06-12 | 6.4 | 10 | 12 | 111 | 1.8 |
2 | MR08-12 | 8 | 12 | 12 | 130 | 2.4 |
3 | MR10-12 | 10 | 14 | 12 | 155 | 3 |
4 | MR13-12 | 13 | 17 | 12 | 197 | 4 |
