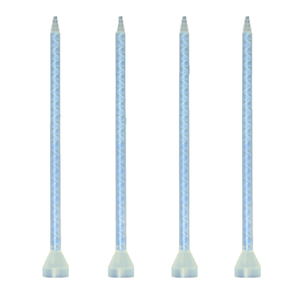

HJ E series static mixers are often used to operate on high-pressure machines. If it is used for high-viscosity glue, please install a metal jacket to ensure safe operation and mixing quality. It can be used in the mixing process of two-component epoxy resin, silicone resin, polyurethane, acrylic and other adhesives. It is easy to use and has a good mixing effect.
Parameters Table：Length unit: mm, Capacity unit: ml
Item | Part Number | ID | OD | QTY Of Elements | Length | Openning | Volume |
1 | HJ-E0524S | 5.4 | 8 | 24 | 149 | 1.5 | 2.3 |
2 | HJ-E1024S | 10 | 14 | 24 | 276 | 2.99 | 16.0 |
3 | HJ-E1032S | 10 | 14 | 32 | 352 | 2.99 | 23.0 |
Item | Part Number | ID | OD | QTY Of Elements | Length | Openning |
4 | HJ-9.3-20 | 9.4 | 12.7 | 20 | 217 | 3 |
5 | HJ-9.3-16 | 9.4 | 12.7 | 16 | 185 | 3 |
6 | HJ-9.3-14 | 9.4 | 12.7 | 14 | 176 | 3 |
7 | HJ-9.3-12 | 9.4 | 12.7 | 12 | 163 | 3 |
